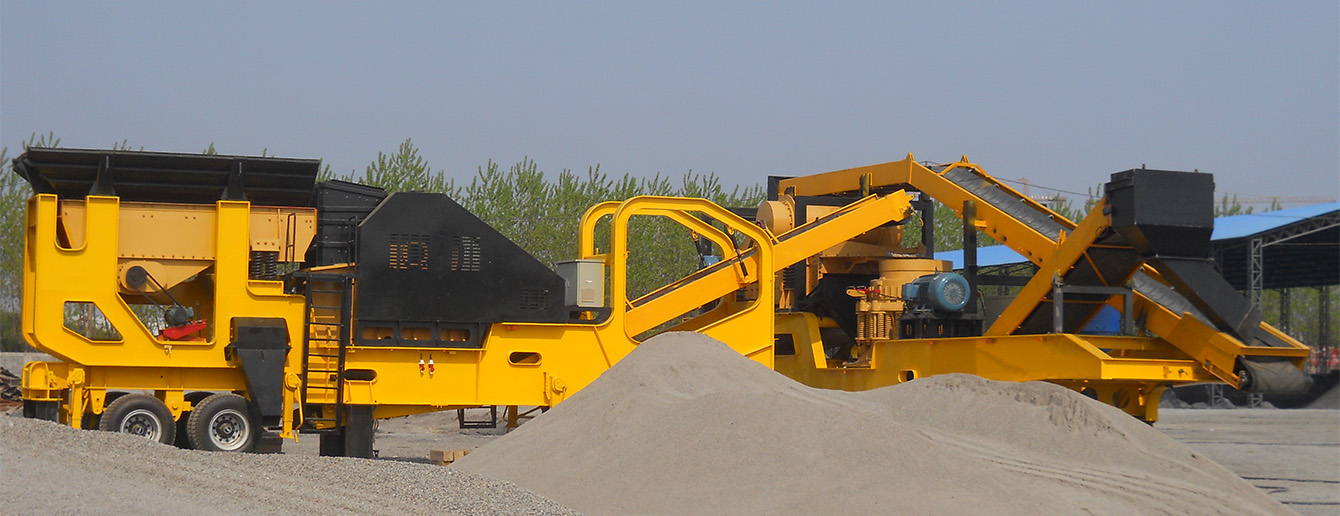

TLD Mobile Jaw crushing plant (tyre)

Feed Particle Size: ＜400mm
Processing Capacity: 50-80t/h
Treat materials: Hard rock (granite, basalt, limestone), metal ore, coal, cement clinker, construction waste, refractory raw materials.
Application Area: Mining, metallurgy, chemical, building materials, hydropower, highway & tunnel construction, construction waste recycling, aggregate production.

Get A Quote

Product Details:

Tyre mobile jaw crushing plant of Shanghai Dongmeng is an integrated primary crushing unit with jaw crusher, feeder and conveyor mounted on tyre chassis. It can move freely between construction sites without complicated foundation works. Customizable configurations are available for different raw materials, output capacity and finished size requirements.

Product Parameters:

Jaw Crusher Mobile Crushing Station (tyre）
Model	TLDII2-69	TLDII2-75
Crusher Model	TZP69	TZP7510
Trailer main belt	B800	B1000
Trailer return material belt	B650	B800
Trailer finished material belt	2×B500	2×B500
Transportation length (mm)	10070	11270
Transportation width (mm)	2500	2800
Transportation height (mm)	4500	4900
Working Length (mm)	10070	11270
Working width (mm)	3400	4200
Working height (mm)	4000	4500
Power (KW)	75	140
Trailer axle	2axle	2axle
Weight (T)	41	51
