Complete Ore Crushing Production Line Configuration Scheme

The global metal mineral mining, sand and aggregate processing, and tailing solid waste resource recovery industries keep expanding. Ore hardness, production capacity requirements and environmental standards vary greatly in different regions. A standardized complete set of ore crushing production line serves as the core foundation to guarantee stable project commissioning and control processing costs. A full crushing line cannot be simply assembled with single crushers; it requires hierarchical matching based on raw ore size, target discharge particle size, site conditions and power supply environment, covering full-process equipment including primary crushing, medium & fine crushing, screening, conveying and dust removal. Global mining enterprises and engineering contractors often face problems such as insufficient capacity, poor aggregate shape and high operation & maintenance costs due to unreasonable process matching during procurement. At this time, a professional ore crushing manufacturer with overall solution design capability can solve all difficulties including production line planning, equipment customization and overseas on-site services in one stop. Combined with working conditions of various global mining projects, this article breaks down the hierarchical configuration logic of standard ore crushing production lines, and takes Shanghai Dongmeng equipment as an example to explain complete crushing solutions adapted to the global market.

1. Core Equipment of a Complete Ore Crushing Production Line

A standard ore crushing production line suitable for global projects consists of five major modules: feeding, multi-stage crushing, screening, conveying and environmental auxiliary equipment. The selection of main machines differs according to different raw ore materials:

1. Feeding Equipment: Vibrating Feeder

Installed under the raw material bin, it delivers raw stones evenly and continuously, while screening out fine soil to prevent large ore blocks from directly entering the crusher and causing blockage. It adapts to high-tonnage feeding conditions in open-pit mines and aggregate plants, divided into heavy-duty and light-duty specifications. Sealed dust-proof housings are optional for mining areas with heavy dust.

2. Primary Crushing Main Machine: Jaw Crusher / Gyratory Crusher

European jaw crushers are selected for primary crushing of large raw ores with high hardness such as granite and basalt. Gyratory crushers are preferred for large-scale open-pit metal mines with annual output of tens of millions of tons, which can directly accept oversized raw ores with larger single-machine capacity and suit long-term large-scale mining projects.

3. Medium & Fine Crushing Main Machine: Hydraulic Cone Crusher / Impact Crusher

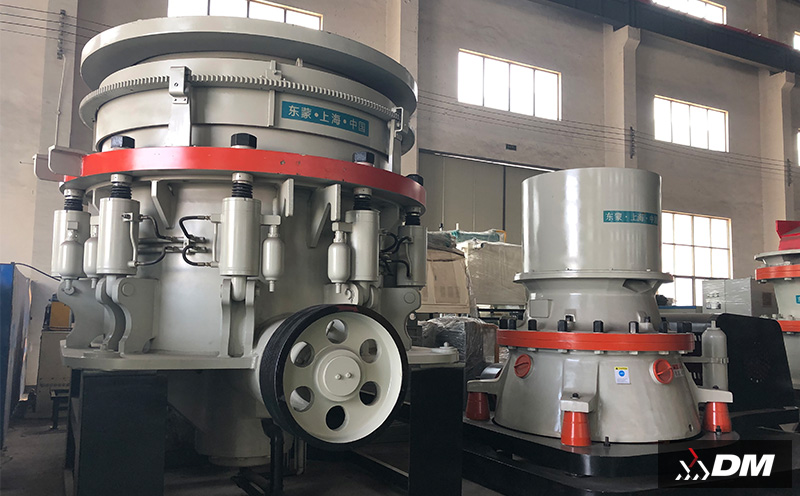

Hydraulic cone crushers are adopted for processing high-hardness metal ores and wear-resistant aggregates with lower loss of wear parts. Impact crushers are used for medium and soft materials such as limestone and construction waste, producing aggregates with excellent cubic particle shape that meet production standards for road and building aggregates.

4. Sand Making & Shaping Equipment: Vertical Shaft Impact Sand Maker

Sand makers are installed in production lines requiring high-quality manufactured sand to shape and refine crushed stones, solving the problem of excessive flaky particles from cone and impact crushers and meeting material standards for high-grade concrete and infrastructure sand aggregates.

5. Screening Equipment: Multi-layer Vibrating Screen

It classifies finished stones of different specifications, realizes secondary crushing of coarse returned materials and separate discharging of qualified aggregates. The number of layers can be customized according to the quantity of finished product specifications, and waterproof sealed screening models are available for rainy overseas regions.

6. Supporting Conveying and Environmental Protection Equipment

Belt conveyors connect all main machines to complete material transportation. Pulse dust collectors, spray dust suppression and sound insulation covers form a complete environmental protection system that complies with dust and noise emission regulations for mines in Europe, America, Southeast Asia, the Middle East and other regions.

2. Standard Configuration Schemes of Mainstream Global Ore Crushing Production Lines

Three mature complete schemes are divided according to production capacity and ore hardness, covering all types of small, medium and large mining projects worldwide:

1. Small & Medium Sand Aggregate Production Line (Hourly Output: 50–300 Tons)

Application: County-level sand plants, small and medium infrastructure projects, construction waste recycling; raw materials mainly include limestone, river pebbles and concrete blocks.

Configuration Process: Raw material bin → Vibrating feeder → European jaw crusher (primary crushing) → Belt conveyor → Impact crusher (medium crushing) → Multi-layer vibrating screen. Coarse materials on the screen flow back to the impact crusher for secondary crushing, and sand makers can be added as needed to produce manufactured sand.

2. Hard Rock Metal Ore Crushing Production Line (Hourly Output: 300–1000 Tons)

Application: Iron ore, copper ore, lithium ore and granite aggregate bases with high ore hardness and strong wear resistance; projects with operation cycles of more than 5 years.

Configuration Process: Raw material bin → Heavy-duty feeder → Jaw crusher / Gyratory crusher for primary crushing → Hydraulic cone crusher for medium & fine crushing → Vibrating screen classification. A fully enclosed workshop with dust removal is matched to ensure stable particle size of mineral separation raw materials.

3. Large-Scale Comprehensive Crushing Production Line (Hourly Output: 1000–3000 Tons)

Application: Large overseas open-pit mines and national-level sand industrial parks with non-stop continuous production all year round.

Configuration Process: Large gyratory primary crusher + multiple parallel hydraulic cone fine crushers + multiple screening units + centralized dust removal system. An automatic central control system uniformly regulates all equipment on the line, adapting to unattended mining areas overseas.

Key Adaptation Adjustment Points for Ore Crushing Production Lines in Different Regions

Working conditions vary greatly around the world, so general schemes cannot be directly applied to complete production lines, and targeted configuration adjustments are required:

1. Power-shortage mining areas in Africa and Southeast Asia: Equip additional diesel generator sets, and optional electric-diesel dual-drive crushers to reduce dependence on power grids;

2. Environmentally controlled areas in Europe and Australia: Upgrade fully enclosed dust removal and noise reduction equipment, and the whole machine meets EU CE safety and environmental certifications;

3. High-altitude and high-temperature Gobi mining areas: Refit crusher motors and lubrication systems for high temperature and low pressure, and thicken wear-resistant accessories;

4. Rainy rainforest areas: All motors and screening equipment are treated with waterproof and anti-corrosion treatment, and rain sheds are installed on belt conveyors.

3. How to Select a Reliable Ore Crushing Manufacturer for Custom Complete Production Lines — Take Shanghai Dongmeng Equipment as an Example

Most manufacturers on the market only sell single crushers separately and cannot provide integrated design of the entire ore crushing production line, which easily leads to unbalanced equipment matching and poor process connection. When purchasing a complete crushing line globally, customers should prioritize professional ore crushing manufacturers integrating R&D, complete set design, production, export and overseas after-sales services. Shanghai Dongmeng Road & Bridge Machinery has been deeply engaged in the export of mine crushing equipment for many years, and can customize complete crushing configuration schemes according to overseas customers’ ore samples, site drawings and local regulations.

In terms of hardware equipment, Shanghai Dongmeng independently produces full-series core crushing main machines: DC European jaw crusher, DXF gyratory primary crusher, multi-cylinder hydraulic cone crusher, PFW impact crusher, VSI vertical shaft sand maker, as well as supporting feeding, screening and environmental protection equipment. No third-party main machines are purchased externally, so the matching degree of all equipment on the complete line is higher and the failure rate is lower. The whole machine adopts thickened wear-resistant frame, hydraulic discharge adjustment and intelligent overload protection, extending the service life of wear parts by more than 20%, adapting to global ore processing conditions with high abrasion.

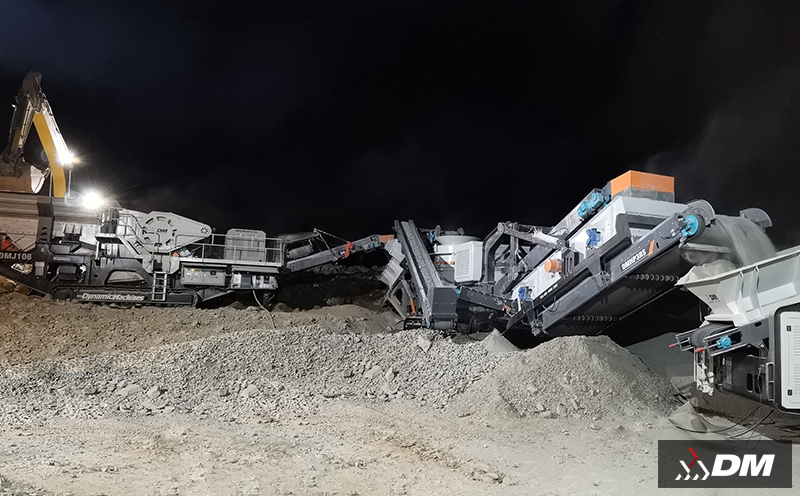

In terms of solution customization capability, engineers of Shanghai Dongmeng can remotely communicate with overseas customers, and provide free production capacity calculation, factory layout drawings and bilingual process schemes. Targeted equipment refitting is carried out for special scenarios such as power shortage in Africa, strict environmental protection standards in Europe and narrow mountain sites. The production line supports fixed complete layout, and can also be matched with mobile crushing stations to form a semi-mobile crushing system, meeting the dual demands of short-term scattered mine sites and long-term large-scale mines.

The global service system is the key to the implementation of overseas projects: free site survey and scheme planning in the early stage; modular containerized shipment in the medium term to reduce sea freight costs, with dispatched engineers conducting on-site installation, commissioning and training for local operators; rapid spare parts delivery from global spare parts warehouses and 24/7 online remote operation & maintenance guidance in the later stage, solving the pain point of long maintenance cycles for cross-border equipment. At present, complete ore crushing production lines of Shanghai Dongmeng have been exported in batches to more than 40 countries including Central Asia, Africa, Southeast Asia, Latin America and Europe, with thousands of sand, metal ore and solid waste processing lines put into operation.

4. Summary on Procurement and Configuration of Ore Crushing Production Lines

The core of building an efficient, low-cost and compliant ore crushing production line lies in reasonably matching crushers at different stages, equipping corresponding auxiliary equipment, and making personalized adjustments combining the local environment, power supply and environmental protection policies of the project. Simply purchasing single machines for assembly will easily cause capacity waste and soaring operation costs.

For global mining enterprises and engineering contractors, it is recommended to select ore crushing manufacturers with complete production line design qualifications, self-owned core crushing equipment and sound overseas service networks. Shanghai Dongmeng can provide one-stop overall configuration schemes for ore crushing, following up the whole process from process planning and equipment production to cross-border installation and after-sales service, helping all types of global mines and aggregate projects realize green, efficient and stable production.
