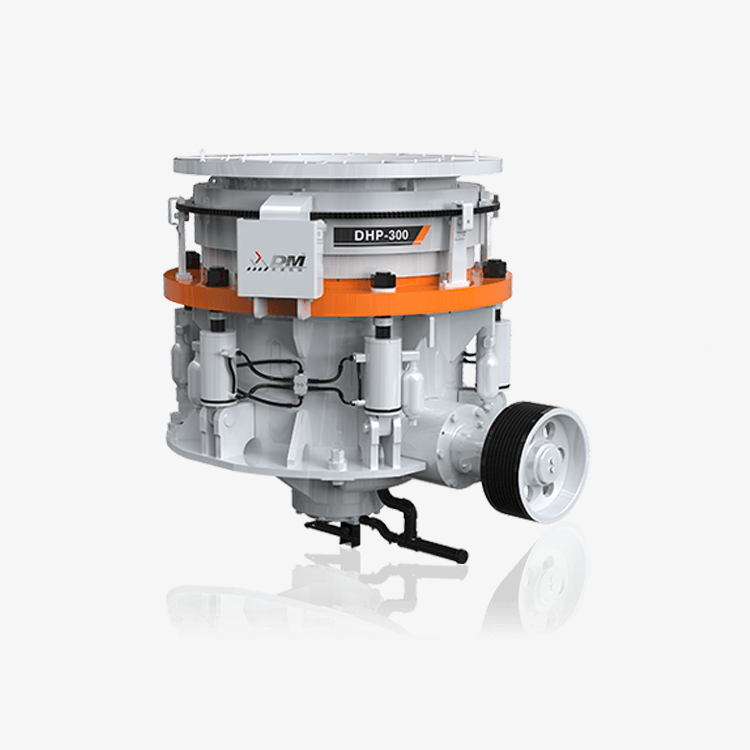

DHP multi cylinder hydraulic cone crusher

Feed Particle Size: ≤335mm
Processing Capacity: 95-884t/h
Machinery Weight: 10.9-34.1t

Download Brochure Get A Quote

Product Details:

DHP-multi-cylinder-hydraulic-cone-crusher

The designed hydraulic lubrication system not only ensures the reliable operation of the equipment, but also greatly reduces the time and manpower input.

When the DHP multi-cylinder hydraulic cone crusher is working, the rotation of the motor rotates around a fixed pendulum through the pulley or coupling, the transmission shaft and the cone part under the force of the eccentric sleeve, so that the crushing wall of the cone crusher is sometimes close to the From time to time, it leaves the surface of the rolling mortar wall fixed on the adjustment sleeve, so that the ore is continuously impacted, squeezed and bent in the crushing cavity to achieve the crushing of the ore.

Product Parameters:

Model	Cavity type	Max.feed size (mm)	Range of discharge port	Motor power(kw)	Capacity (t/h) Closed side setting (mm)									weight(t)
Model	Cavity type	Max.feed size (mm)	Range of discharge port	Motor power(kw)	13	16	19	22	26	32	38	45	51	10.9
DHP200	C	185	22-38	160				180	195	210	225
	M	125	16-32			118	140	163	182	200
	F	95	13-26		95	115	135	160	180
DHP300	EC	230	26-51	220					230	270	320	370	400	17.8
	C	221	22-45					210	225	260	310	360
	M	150	16-38			155	175	200	220	260	295
	F	107	13-32		110	135	165	195	225	250
DHP400	EC	300	32-51	315						365	420	480	520	25
	C	250	26-51						315	350	405	470	500
	M	200	22-45					266	302	340	390	450
	F	120	16-38			198	210	260	300	330	380
DHP500	EC	335	32-51	400						460	560	615	715	34.1
	C	280	26-51						390	455	550	612
	M	210	22-45					340	382	440	545	600
	F	133	16-38			285	305	335	378	435	540
DHP800	EC	355	32-63	600					720	800	900	1028	1200	69
	C	305	32-51						710	785	890	1000
	M	260	26-45					620	698	780	885
	F	215	22-38			480	520	610	690	780
