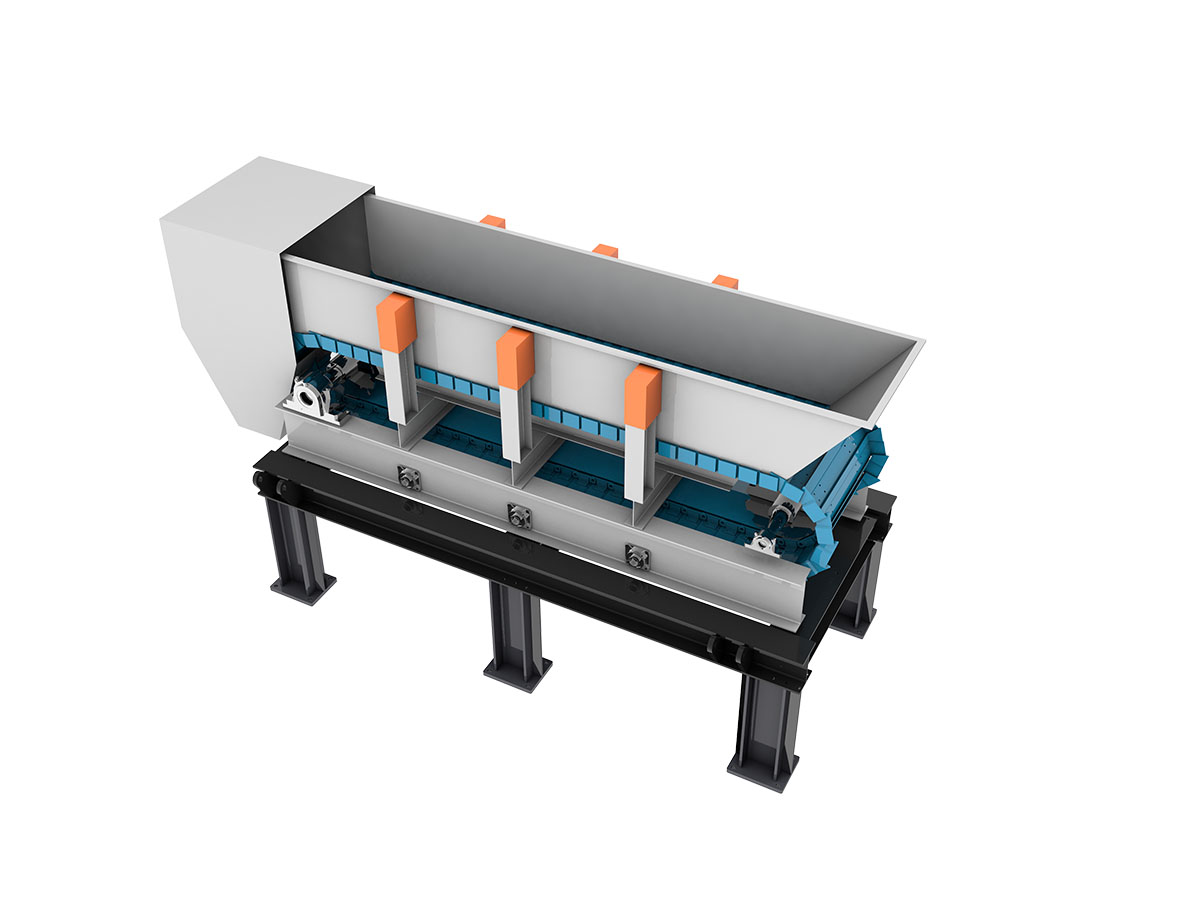

Chain apron feeder

Get A Quote

Product Details:

　　Designed for transporting lumpy, granular, and bulk materials across industries, including building materials, metallurgy, and mining. This system excels in handling coarse and fine-grained materials alike, performing reliably in harsh environments while demonstrating exceptional adaptability to variations in material gradation, temperature, viscosity, frost,rain/snow exposure, and frozen aggregates.

　　Application-Construction waste disposal solution

　　construction waste

　　Defined as residual soils, excavated materials, demolition debris, slurry, and other waste

　　substances generated during construction, demolition, or renovation activities by construction units or individuals on buildings, structures, pipelines, and related infrastructure.

　　Solution description:

　　Our system utilizes hydraulic jaw crushers, large-diameter impact crushers, high frequency composite screens, and lightweight material sorting equipment to execute a streamlined conversion process.

Product Parameters:

Performance Requirements for Apron Feeders
• Apron Feeder BZ1200*6: No special performance requirements.
• Apron Feeder DMBL1238: The feed hopper is installed on the upper part and the discharge hopper on the front part; The frame shall have good rigidity and load-bearing capacity, and possess excellent resistance to instantaneous material impact.

Equipment Name	Parameter Item	Parameter Content
Apron Feeder BZ1200*6	Maximum Feed Size	≤500mm
	Processing Capacity	80-160t/h
	Dimension	1200×6000mm
	Installed Power / Protection Class	15kw; IP55
	Speed Regulation Method	Frequency conversion, speed adjustable
	Reducer Drive Brand	Guomao, Boneng or domestic equivalent grade
Apron Feeder DMBL1238	Maximum Feed Size	≤600mm
	Processing Capacity	≥90t/h
	Dimension	1200×3800mm
	Installed Power	≥15kw
	Installation Angle	15°
	Speed Regulation Method	Frequency conversion, speed adjustable
	Motor Reducer Brand / Protection Class	Kaili; IP55
