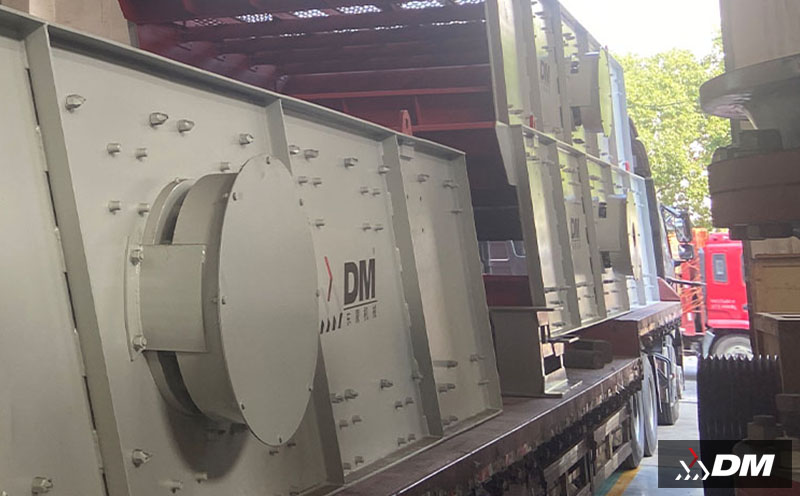

What is a vibrating screen?

A vibrating screen is core equipment used worldwide for material classification, screening, impurity removal and solid-liquid separation. Through mechanical vibration, materials of different particle sizes move and stratify on the screen surface to achieve precise separation. It is widely applied in mining, sand and gravel, building materials, metallurgy, environmental protection, chemical engineering and other industries, serving as an indispensable part in crushing, sand making, mineral processing and other production lines.

Core Working Principle
The core of a vibrating screen is the vibrator (motor + eccentric block), which generates periodic excitation force to drive the screen box and screen mesh to vibrate: - Material stratification: After entering the screen surface, materials loosen and bounce under vibration, with fine particles sinking and coarse particles floating up. - Particle separation: Fine materials smaller than the screen holes pass through the mesh as "undersize products"; coarse materials larger than the screen holes move along the surface and are discharged from the outlet. - Vibration trajectory: Main types include linear vibration (for coarse classification) and circular/elliptical vibration (for efficient screening of medium and fine materials), matching different material and precision requirements.

Main Types
- Circular vibrating screen: Circular/elliptical trajectory, high screening efficiency, suitable for medium and coarse material classification in mines and sand plants. - Linear vibrating screen: Linear reciprocating motion, excellent in dewatering and medium removal, used for coal, tailings and sand screening. - High-frequency vibrating screen: High frequency, small amplitude, handles fine powder, slurry and ultra-fine materials, anti-clogging and high precision. - Multi-layer vibrating screen: 2–6 layers of screen mesh, produces multiple particle sizes in one pass, suitable for refined sand aggregate production.

Core Application Scenarios
- Mining & sand: Classification of crushed ore, manufactured sand screening, tailings dry discharge, supporting global infrastructure aggregate supply. - Construction waste recycling: Screening of crushed construction waste, recycled aggregate reuse, in line with global green environmental trends. - Metallurgy & coal: Classification and impurity removal of sintered ore, coke and raw coal, improving smelting and combustion efficiency. - Environmental protection & chemical industry: Sludge dewatering, powder purification, fine raw material screening, meeting global high-standard production requirements.

Development Trends
Modern vibrating screens are upgrading toward intelligence, high efficiency and green development. Equipped with IoT remote monitoring, automatic screen cleaning and intelligent speed regulation, screening efficiency is increased by over 30%. Low-noise, energy-saving and wear-resistant designs adapt to harsh working conditions and environmental standards in Europe, America, Middle East, Africa and other regions, making them key equipment for efficient and sustainable global industrial production.

Vibrating Screen Equipment Selection Guide: Understanding Working Principles and Application Scenarios of Different Types

A vibrating screen is core classification equipment in global sand, mining, infrastructure, solid waste recycling and metallurgy fields. It drives materials to stratify and pass through the screen via mechanical vibration, achieving precise particle separation, dewatering, medium removal and impurity removal. As an essential supporting device in crushing production lines and resource treatment processes, Shanghai Dongmeng, with service experience in more than 80 countries, provides a full range of vibrating screens and one-stop selection solutions for global customers, helping efficiently match material properties, capacity demands and working conditions to improve overall production line efficiency.

Core Selection Logic: Dual Matching of Material Properties and Scenario Demands
Four basic factors must be confirmed first in vibrating screen selection to avoid low efficiency or equipment damage caused by improper selection: - Material parameters: Maximum feed size, target screening size, moisture content, viscosity, density and abrasiveness; - Capacity demand: Target hourly output (t/h), with 10%-20% margin reserved for working condition fluctuations; - Screening precision: Dry/wet type, single/multi-size classification, dewatering/medium removal and other core requirements; - Working environment: Installation space, explosion-proof requirements, temperature/corrosion resistance, and regional environmental standards.

Main Global Vibrating Screen Types: Full Analysis of Working Principles and Application Scenarios

Core Global Advantages of Shanghai Dongmeng Vibrating Screens
- International quality certification: ISO9001 certified, core components wear-resistant and high-temperature resistant, adapting to tropical, frigid, dusty and other complex global working conditions; - Intelligent high-efficiency design: Equipped with automatic screen cleaning (rubber balls/ultrasonic), remote monitoring and fault self-diagnosis, reducing downtime and improving screening efficiency by over 30%; - Modular customization: Screen size, layers and excitation force customized according to customer capacity, site and material properties, easy for sea transportation and global deployment; - Global service support: 7×24-hour rapid response, technical reply within 30 minutes, on-site installation and commissioning by engineers, original spare parts supplied worldwide, lifelong maintenance.

Global Typical Industry Selection Recommendations

1. Mining & Sand Industry (Global Infrastructure Demand)
- Large sand plants/metal mines: Choose circular vibrating screen (3-4 layers) for raw ore classification after coarse crushing, capacity 300-500t/h, stable and impact-resistant structure; - Fine manufactured sand processing: Choose linear vibrating screen with sand washing line for dewatering, medium removal and precise fineness modulus control, uniform finished grain shape; - Tailings/sand recovery: Choose high-frequency vibrating screen (with ultrasonic cleaning) to improve fine sand recovery rate and reduce waste, suitable for strict environmental policy regions.

2. Solid Waste Recycling & Environmental Industry (Global Green Trend)
- Construction waste recycling: Choose circular vibrating screen (multi-layer) to separate recycled aggregates and impurities, suitable for urban demolition sites and remote treatment plants; - Sludge dewatering: Choose linear vibrating screen (wet type) for solid-liquid separation, complying with EU, Middle East and other regional environmental standards.

3. Coal & Metallurgy Industry (Heavy Industry Scenarios)
- Coal classification: Choose circular vibrating screen to separate lump coal and fine coal, adapting to high-temperature and high-dust conditions; - Metallurgical sinter screening: Choose linear vibrating screen for precise particle control, improving smelting efficiency for steel production lines.

Summary: No Absolute Best, Only the Most Suitable
- Choose circular vibrating screen – for coarse classification, large capacity, remote mobile scenarios, preferred by global sand plants and mines; - Choose linear vibrating screen – for fine classification, dewatering & medium removal, medium-fine material processing, suitable for infrastructure and heavy industry lines; - Choose high-frequency vibrating screen – for ultra-fine particles and high environmental requirements, ideal for fine processing and environmental recycling fields.

Shanghai Dongmeng has over 30 years of expertise in global crushing and screening equipment. With a full product range, professional selection services and global localized support, we have helped customers in more than 80 countries achieve efficient classification and resource utilization. Whether you are engaged in mining development in Africa, sand production in Southeast Asia, solid waste recycling in Europe, or infrastructure projects in the Middle East, contact Shanghai Dongmeng International Marketing Department for exclusive vibrating screen selection solutions, accurate quotations and global project cases to support efficient project implementation worldwide.
