How Does a Jaw Crusher Work? Working Principle & Crushing Process

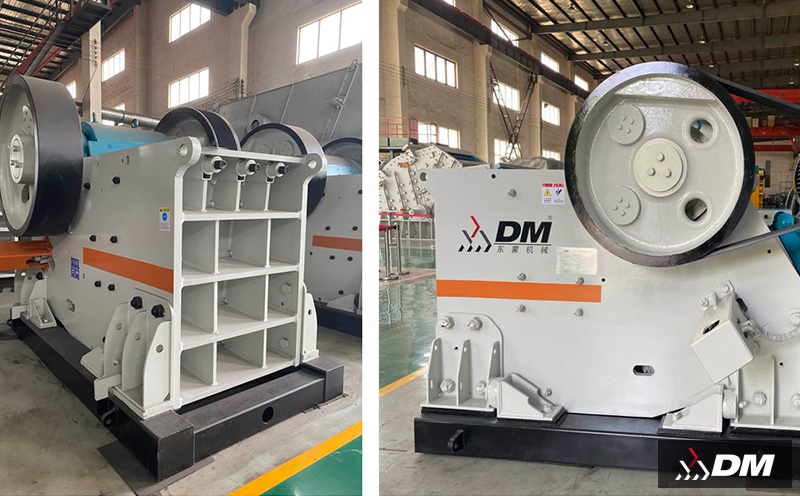

A Jaw Crusher is primary crushing equipment widely used in sand and aggregate production, mining and construction waste recycling. Its crushing cavity consists of a fixed jaw plate and a movable jaw plate, forming a V-shaped crushing chamber, wider at the top feed inlet and narrower at the bottom discharge opening. As a professional Jaw Crusher factory, DM provides reliable jaw crushing equipment for global customers.

Driven by the electric motor, power is transmitted through V-belts and pulleys to drive the eccentric shaft. The rotating eccentric shaft enables the movable jaw to perform periodic reciprocating swinging motion, moving towards and away from the fixed jaw plate.

When the movable jaw swings toward the fixed jaw, raw rocks trapped between the two jaw plates are subjected to compression, bending and splitting forces. Once the applied stress exceeds the rock’s compressive strength, the stones fracture into smaller fragments.

As the eccentric shaft continues rotating, the movable jaw retreats backward. The gap of the bottom discharge opening widens. Crushed particles that meet the required size fall out from the outlet under gravity. Oversized rock pieces stay inside the crushing chamber and undergo repeated crushing in the next working cycle.

This cyclic squeezing and releasing movement runs continuously, achieving batch crushing of bulk rocks to produce qualified aggregate products. The toggle plate serves as a key safety component: it will fracture automatically when uncrushable foreign objects enter the crushing cavity, protecting the crusher’s main components from severe damage.

Key Advantages of DM Jaw Crushers

DM jaw crushers are engineered for heavy-duty primary crushing operations. The optimised crushing cavity design delivers higher feeding capacity and superior crushing efficiency. Robust cast body and high wear-resistant jaw plates extend service life and reduce maintenance downtime.

Easy discharge gap adjustment helps users quickly modify final product size to meet different project specifications. The reliable toggle plate safety structure effectively prevents equipment damage from unbreakable materials. DM jaw crushers are available in both stationary and tracked mobile versions, perfectly adapting to mine, tunnel muck and construction solid waste sites.
