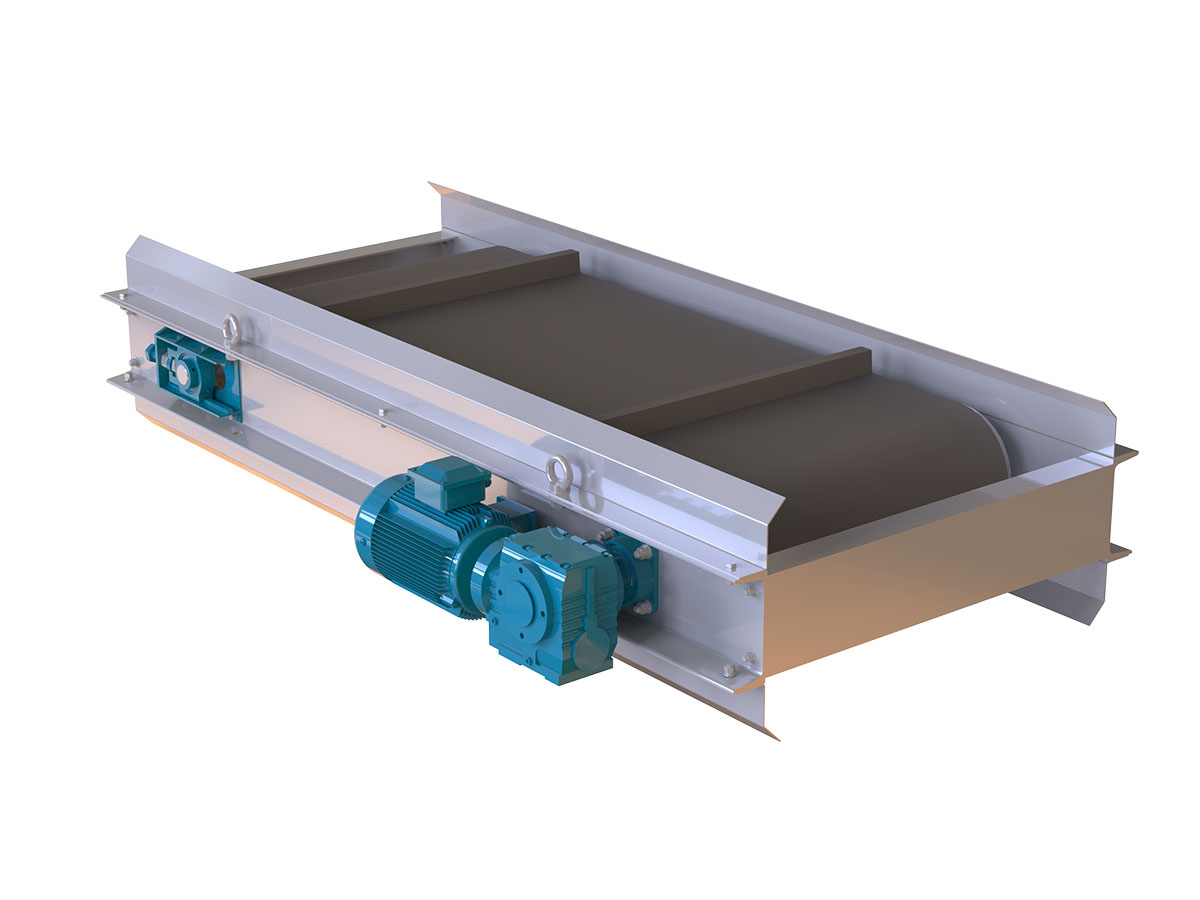

Self-discharging magnetic separator

Get A Quote

Product Details:

　　This is a self-unloading magnetic separator, spanning above a belt conveyor, used to separate ferromagnetic substances from materials passing through the conveyor. The machine consists of a high-performance rare-earth permanent magnet core, a self-unloading belt, a geared motor, a frame, and a drive roller, and is used to automatically remove magnetic substances weighing 0.05-50 kg from non-magnetic materials. Its internal magnetic circuit adopts a computer-simulated design and a sophisticated dual-pole structure, ensuring long-term trouble-free operation of the entire machine in harsh environments. 　　Engineered for operation in harsh environments, this system replaces belt drives with cycloidal reducers ,ensuring reliability, easy adjustment, and simplified maintenance. Automatically extracts ferrous contaminants from non-magnetic material streams. 　　Performance Requirements: Efficiently sorts ferromagnetic substances from materials during transport; modular assembly is required; the material to be processed is construction waste. 　　 Self-discharging magnetic separator

Product Parameters:

Performance Requirements for Self Discharging Magnet Separator
• Self Discharging Magnet Separator (RCYD-10): Effectively separate ferromagnetic materials in conveyed materials; Process requirement: Integral modular assembly; Processed materials: Demolition waste / decoration waste.
• Self Discharging Magnet Separator (B=800/650): No additional special performance requirements specified (main iron removal form is permanent magnet type).

Equipment Name	Parameter Item	Parameter Content
Self Discharging Magnet Separator RCYD-10	Iron Remover Belt Width	1000mm
	Rated Lifting Height	≤300mm
	Driving Power	3kw
	Maximum Applicable Belt Speed	≤4.5m/s
	Rated Voltage	380V
	Rated Frequency	50Hz
	Drive Motor Brand / Protection Class	Guomao or Kaili; IP55
	Pressure Range	4454-3012Pa
Self Discharging Magnet Separator B=800/650	Equipment Model / Belt Width	RCYD-8 / RCYD-6.5; 800mm / 650mm
	Rated Lifting Height	≤300mm
	Driving Power	3kw/2.2kw
	Iron Removal Form	Permanent Magnet
	Maximum Applicable Belt Speed	≤4.5m/s
	Rated Voltage	380V
	Rated Frequency	50Hz
	Magnetic Field Strength	≥70mT
