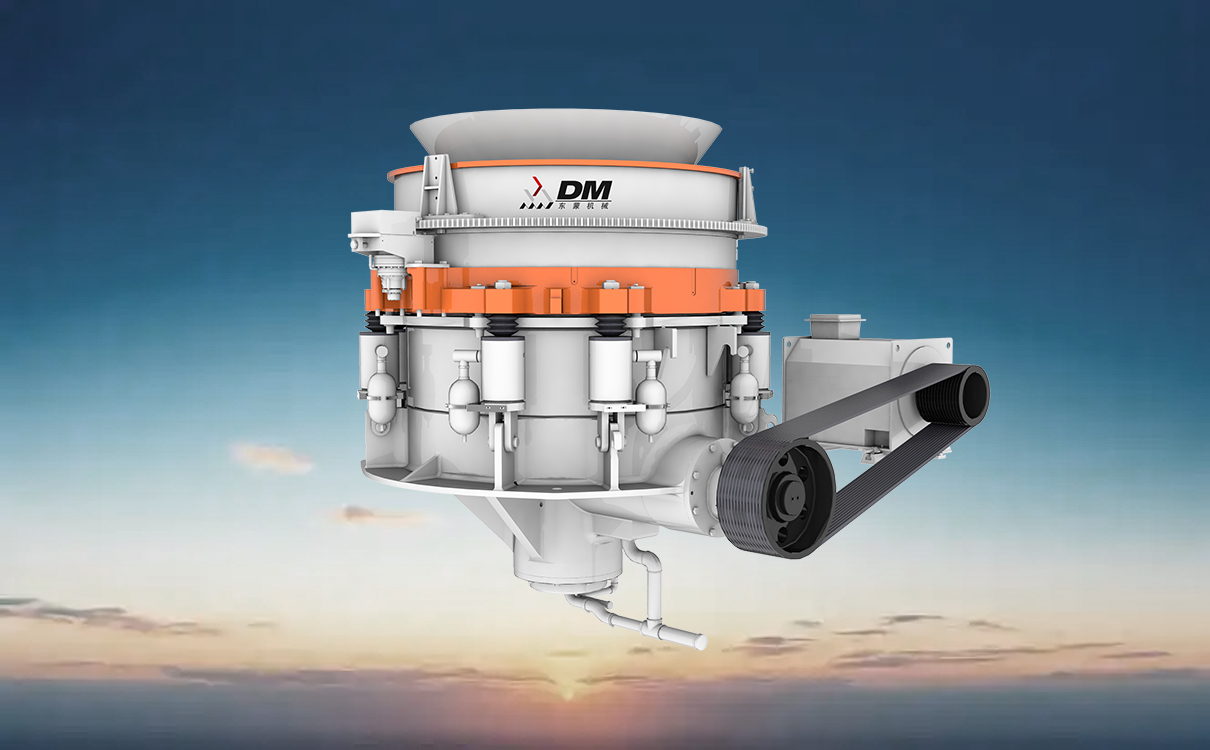

DHY1680/DHY2060/DHY2160/DHY2580 DHY hydraulic cone crusher

Feed Particle Size: 400mm
Processing Capacity: 185-1800t/h
Machinery Weight: subject to reality

Download Brochure Get A Quote

Product Details:

DHY

The DHY Series Hydraulic Cone Crusher is a state-of-the-art cone crusher developed by integrating advanced technologies worldwide. As a high-performance cone crusher, it features optimized combination of rotating speed and crushing cavity design in its development, enabling inter-particle laminated crushing. Compared with conventional cone crushers, it significantly increases production capacity and greatly improves the shape of finished products.

In the event of instant jamming caused by iron passing through the crusher, the machine can automatically discharge the faulty materials in the crushing cavity via its hydraulic device without disassembly.

The DHY Series Hydraulic Cone Crusher is widely used in industries such as ore crushing, construction aggregate production, construction waste crushing, water conservancy and hydropower projects, as well as highway, railway and road-bridge construction.

Product Parameters:

Model	Cavity type	Max.feed size (mm)	Range ofdischarge port(mm)	Motor power(kw)	Capacity (t/h) Closed side setting (mm)
Model	Cavity type	Max.feed size (mm)	Range ofdischarge port(mm)	Motor power(kw)	10	13	16	19	22	25	32	38	51	64
DHY1680	C	267	22	280-315					345	410	495	550	685	760
	M	203	16	280-315			240	280	315	345
	F	140	13	280-315		195	235	275	355
	EF	95	10	280-315	185	225	265	340
DHY2060	C	330	25	400-500						600	820	950	1050	1200
	M	250	19	400-500				420	480	560	780
	F	160	16	400-500			390	455	520	600
	EF	115	13	400-500		320	395	460	540
DHY2160	C	400	32	400-500							1125	1350	1650	1800
	M	300	25	400-500						800	1050	1200	1400
	F	180	19	400-500				500	650	720	850
	EF	130	16	400-500			450	550	680	750
DHY2580	C	470	32	500-600							1400	1650	1900	2100
	M	350	25	500-600						1000	1250	1400	1600
	F	200	19	500-600				600	680	790	900
	EF	145	16	500-600			520	610	730	810
